Entities of a part (perimeters, infills, top, bottom, raft, support)

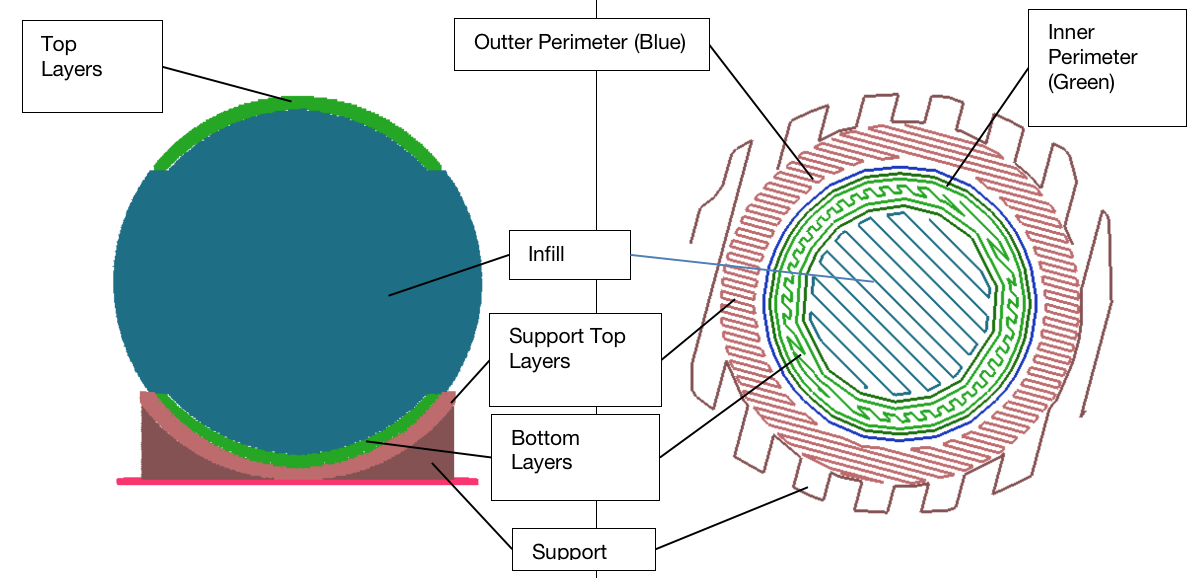

Entities of a Part:The model when sliced is divided into different functional structures or "Entities", and each these entities’ print setting can be adjusted individually.

Perimeter: The wall/shell of the model. The outter most layer is the “Outter Perimeter”, all the perimeter inside the Outter perimeter are “Inner Perimeters”

加密: the region inside the perimeter, can be filled with certain patterns and density

Top/Bottom: The roof and bottom layers of the print

Support:Automatically generated structure that support the overhang structures

Raft:Thick layers that are under the print to improve adhesion and also compensate for unevenness of platform surface.

Entity IDs:different entity can be represented with a ID number, these IDs then could be assigned to an extruder, so that the entity will be printed by a specific extruder. Please refer to挤出机啊ptionsfor more info on this topic.
