有些人表示，在UP工作室v2.6.43中的新材料编辑器是挑战使用。我为那些困惑的人创建了一个快速的逐步，并希望能够自己创建材料概况。
。
。
。
Studio v2.6.4材料编辑器：

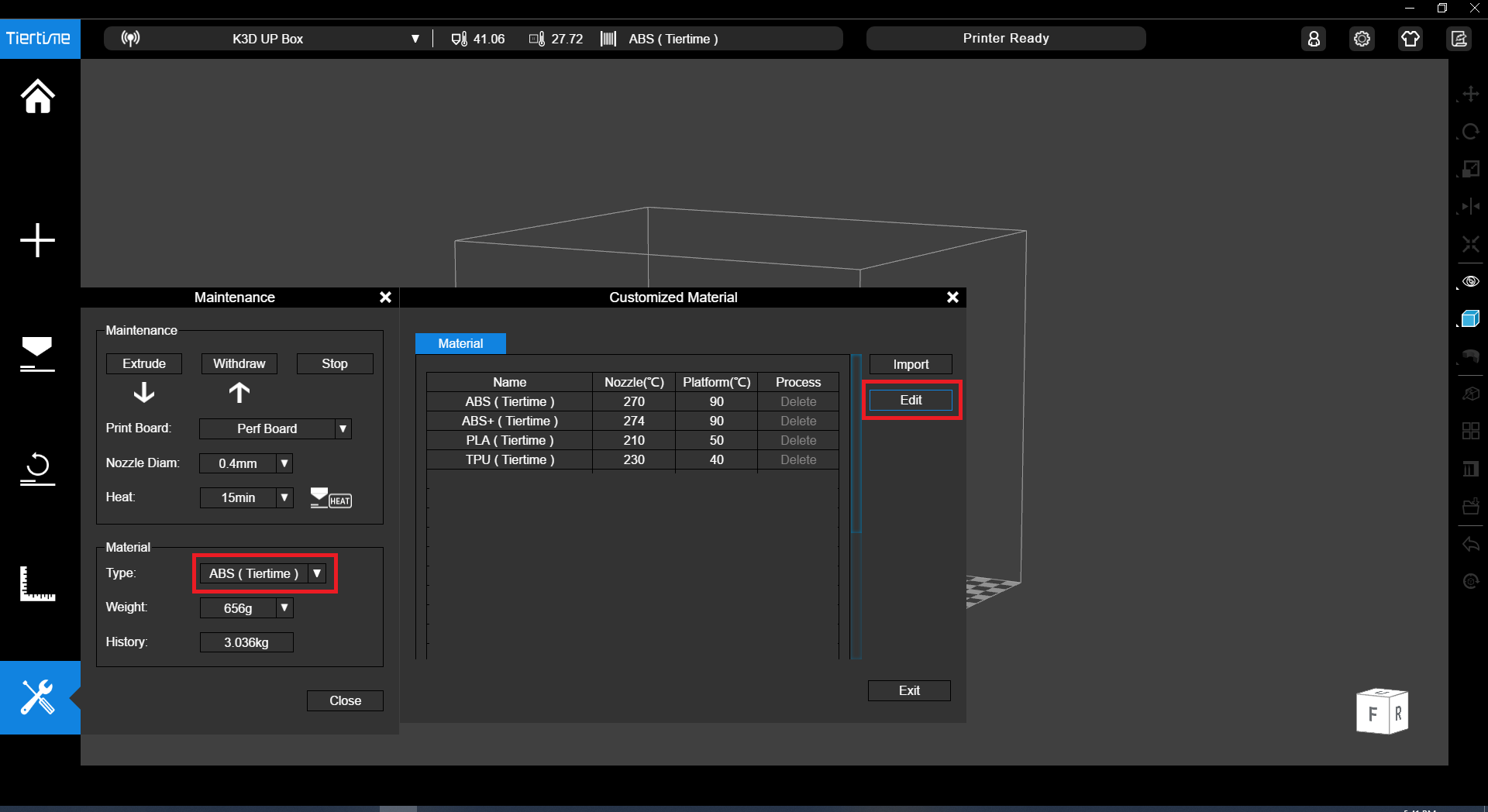

1.)Open UP Studio, make sure your printer is initialised and in the ready state. Open the Maintenance tab on the left, select the material type box, click ‘Customized’. Click the ‘Edit’ button on the right, as indicated below.
2.）

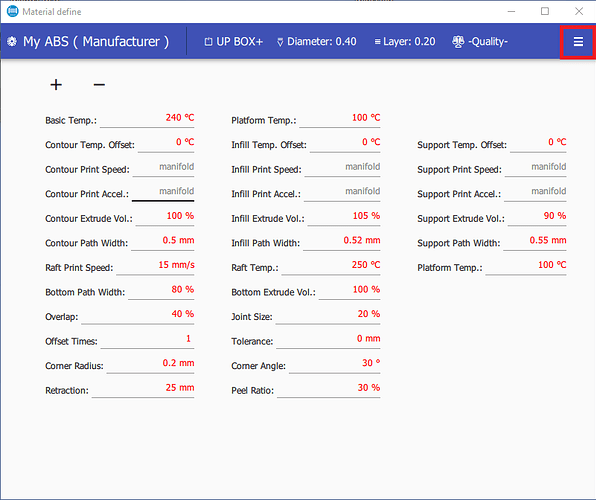

Clicking edit should bring up the new material editor interface.

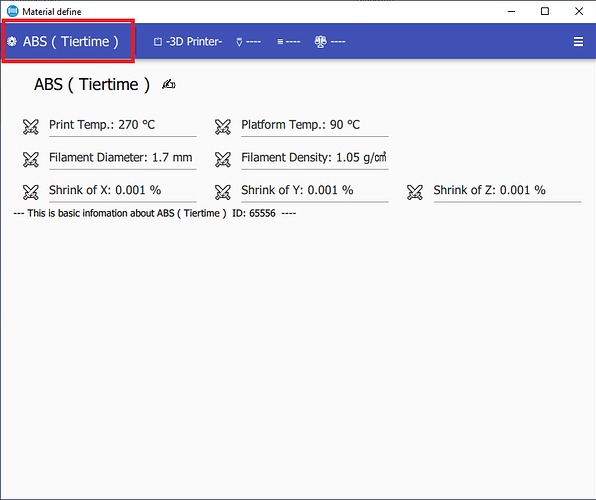

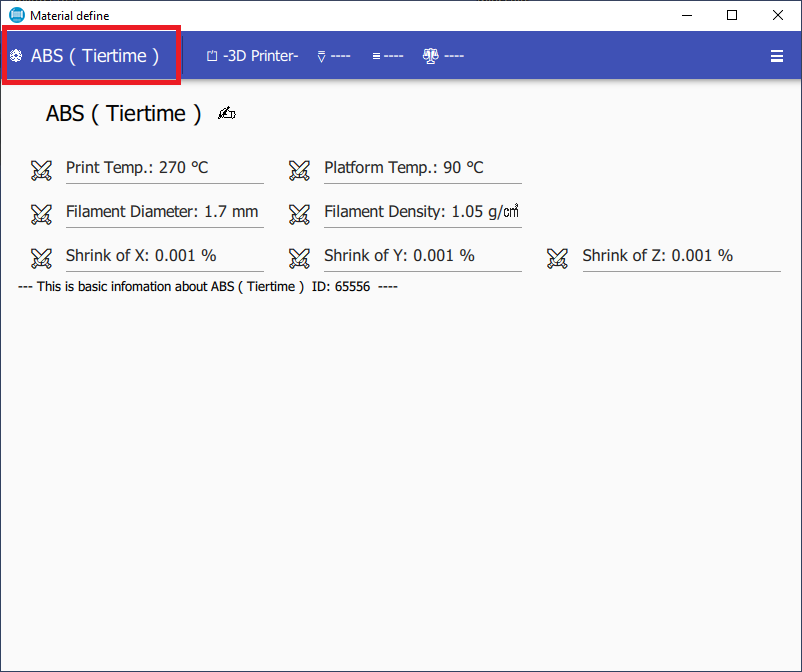

首先选择左上角的活动材料。
3.）

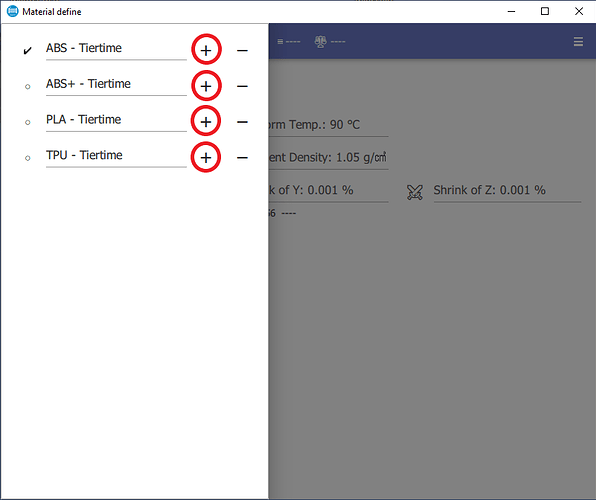

选择四种预先制作的TiVertime材料之一作为新的定制材料的基础。
根据您购买的第三方材料，使用其中一个TiVertime材料作为起点。例如。Marthackers Pro ABS（ABS +）单击材料旁边的“+”按钮。
4.。)

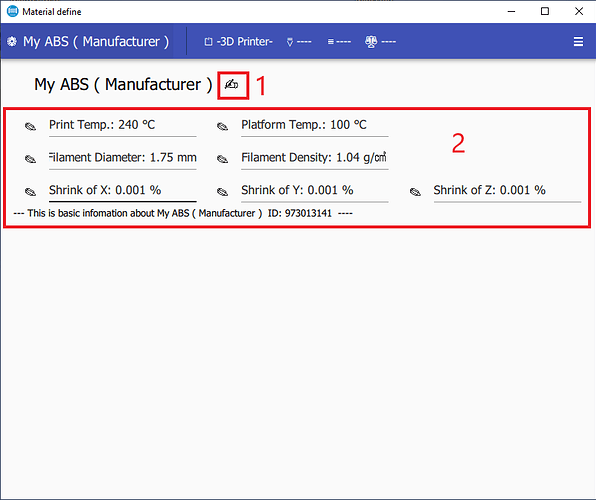

这应该根据您选择的文件创建了新的配置文件。

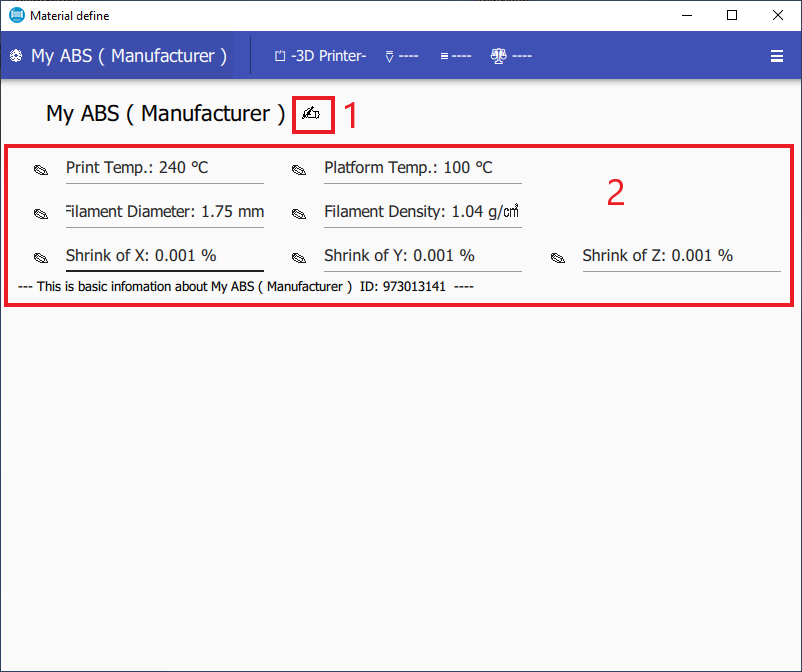

步骤1，重命名您的材料，以便您可以在材料编辑器和工作室中识别它。
Step 2, enter your print temperature that your material extrudes at, platform temperature, filament diameter and density if you want more accurate material estimate readouts. If your material data sheet specifies shrinkage rates, you can enter these too here. If you don’t know them, leave at the default generate values.
5.。)

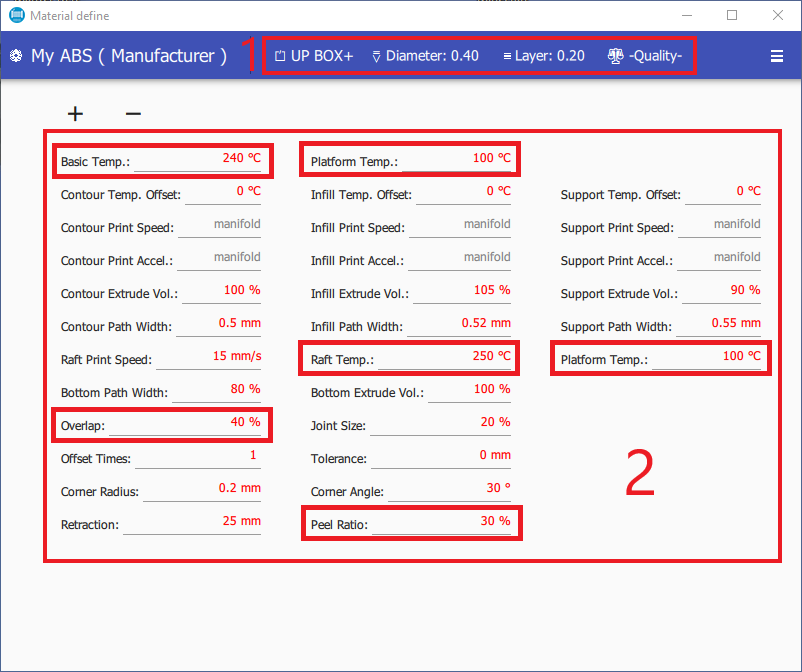

步骤1，在顶部的“3D打印机”的框中，选择打印机型号，然后选择喷嘴直径，层高，“质量”（速度）。
步骤2，编辑下面的红色框中指示的值为您的新材料。请注意，这些将因材料而异，不应直接复制任何材料。
Step 3, I recommend changing the ‘Overlap’ value to a minimum of 40%, this ensures that the infill on harder plastic materials such as ABS and PLA, overlaps correctly with the perimeter/shell closing up gaps between the two.
这里有很多设置。不要碰到你不明白的那些。
6.）

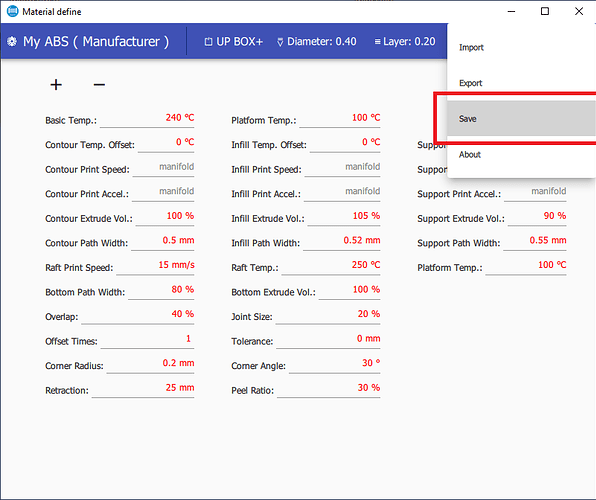

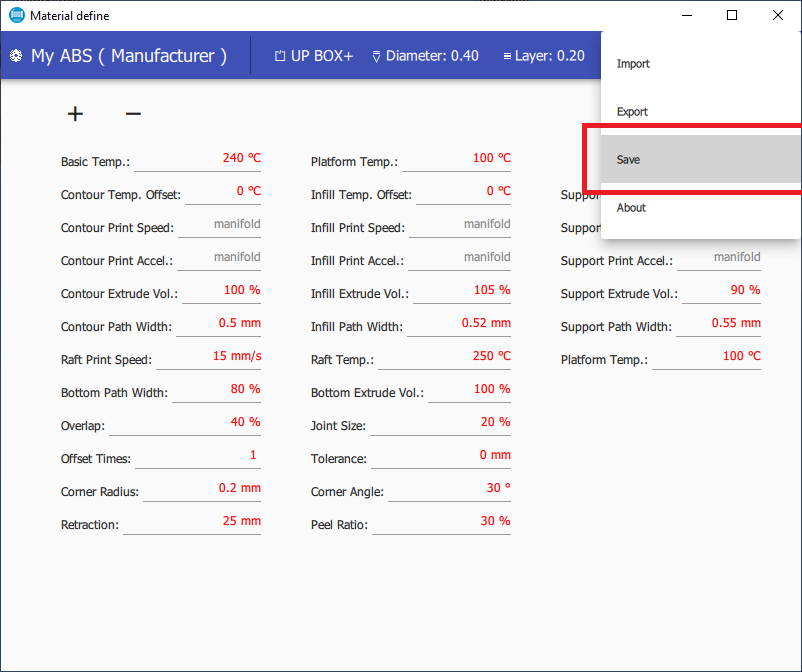

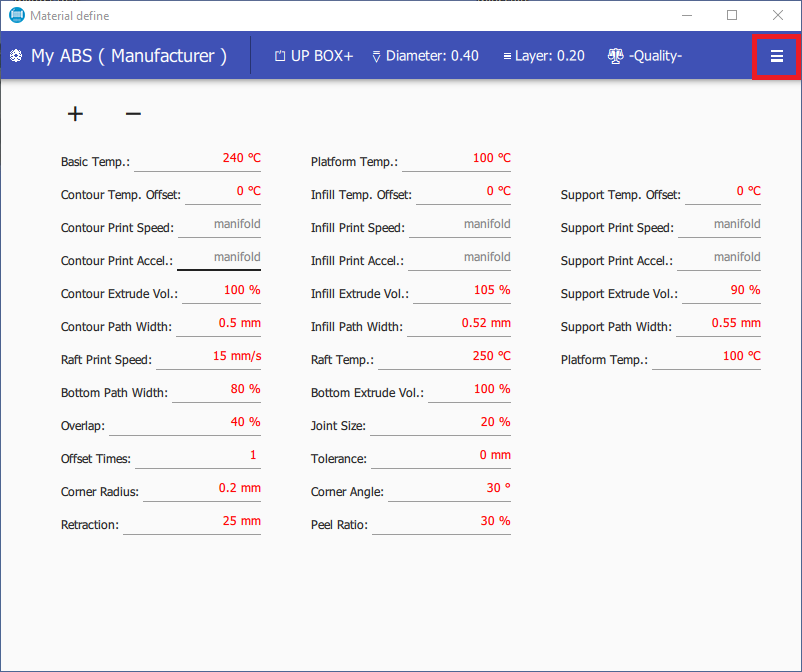

完成对每个打印机型号的材料设置值进行编辑，喷嘴直径和层高度，单击右上角的图标，3个水平栏，然后单击“保存”。如果您不这样做，您的更改将不会保存。每次对任何材料进行任何更改时，您都必须保存更改;它会not自动保存。
Filament Diameter:
设置正确的纤维直径是至关重要的r. The default 1.70mm is extremely unlikely to be what your filament diameter is. Most filament on the market is 1.75mm; it is critical to enter this value or an average diameter measured with digital callipers to ensure your extruder feeds material reliably and that your parts are as dimensionally accurate as possible.
**剥离比例**
调整'剥离比值'值，便于筏子和从部分支撑剥离。0％=毫不费力地移除，100％=不可能的可拆卸
Overlap:
This changes the air gap between the top, bottom and infill layers between the perimeter shell.
If you see gaps between the perimeter shell like below, you can change the overlap percentage value to something greater. I recommend a minimum of 40% for pretty much all materials.
（图片来自SimpleIfy3D）
Offset Times:
Finally, we are now able to change the number of printed shells/perimeters/outlines.

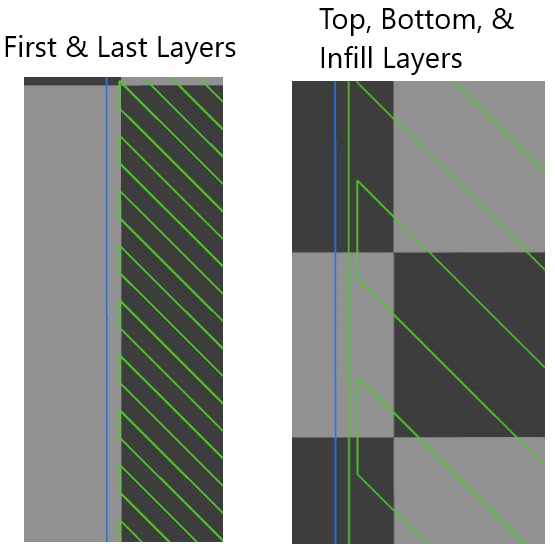

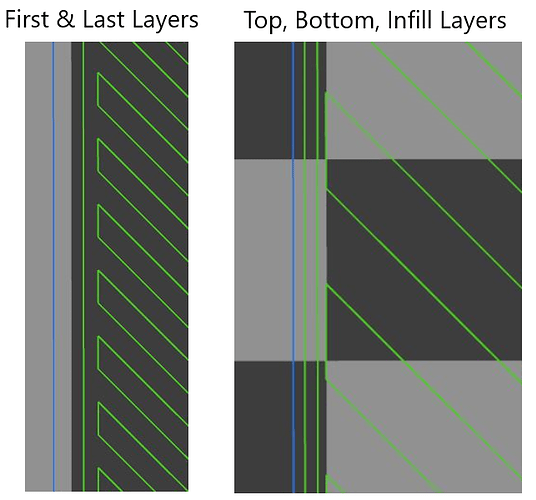

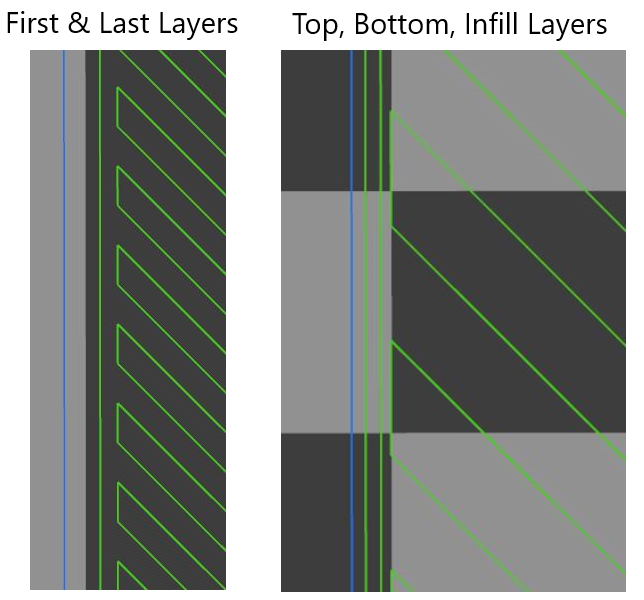

By default, this value is 1. Meaning: It will print one outline for the first part layer, and one for the very last top layer. As soon as the first layer is completed, it will do two outlines from henceforth on the top and bottom layers and infill. So in effect, it already in some way is printing two outlines, but not all the time. Increasing this value effectively means there will always be at least 2 outlines.
Note that UP Studio generates infill by default with a perimeter shell alongside the primary outline.
。
1 Outlines
2轮廓
Retraction:
Retraction is the amount of material retracted by the extruder for every travel move to avoid oozing and stringing.
如果材料编辑器中的值为25mm，根据上述示例，这实际上对应于2.5mmnot25.。0mm of actual retraction length.
。
。
有很多有趣的设置可以在材料编辑器中播放小提琴
Thank you Tiertime for improving the material editor and the new additions to the editor.
