Well folks, no matter how I look at the progress of my batch-of-mods publishing will take me a ton-of-time to complete, and if you’ve been following my storyCetus Fan Shroud with Wind Door, you already know that I don’t have much productive-time each day. Some days are tougher to get through which further reduce the productive time my pain-riddled body allows.

So I have two major mods, one being the z-axis stiffener…and it’s robust folks…z wobble is pretty-much gone…and for the extended versions it’ll be like you now have a backbone. The other major mod is for the extruder assembly, this is where the rubber-hits-the-pavement for accuracy improvements. When I installed the extruder mods it was like the prints suddenly came into focus.

The rest of the mods may seem insignificant, and when used individually the benefits are reduced. It’s the compounding effect when all are used in concert, It’s the sum of these mods where significant increases in accuracy are realized, and the increase in available print-speed is incredulous to watch.

Many of the mods are still in a prototype quality, and then there’s documentation, instructions, 3D CAD cleanup and stl file generation, 3D CAD creation of machined parts and 2D drawings, request-for-quotations on machined parts…just a tad overwhelming for one guy.

The other setback I have, and this may seem ugly to some… I’m desperate for a better quality of life and would love some financial compensation to help me continue this journey of product development.

我接触到你...... Cetus 3D打印机社区......如何让这个Mod-Packa亚博国际网页登录平台ge和手中的任何想法？这么多才能为一个残疾人做的事情很少。我没有看到这一点，这么多工作完成......当然我做了......但那没关系，因为我在梦想模式下花的时间融化了痛苦。

2喜欢
Cetus Fan Shroud with Wind Door
#2

Yeah, it was probably a good time to start off a new thread:slight_smile:

It’s perfectly fine if you decide to monetise your work! From all your reports, you put a lot of effort into the mods and there is still a major work load waiting to be tackled. So by all means, go for it. You could sell it as a digital package via a Shopify shop or sth. similar. There are likely even less involved ecommerce solutions for a limited catalogue with no inventory. Alternatively you could sell it directly via PayPal for example and send it via email. Or publish it on your website in the open and allow for donations (again PayPal makes this easy).The risk of digital goods leaking will always be there and sometimes people find back to the good path later, a donation model will allow for that. But surely it requires a bit of a leap of faith, I get that. Another or an additional way would be to look into sth like Patreonhttps://www.patreon.com.

Besides compensation for your work, is there any help you require or ask for?

干杯，

Andreas

#3

I really appreciate your thoughts@superhans, thank-you for taking the time to help me get through deciding which path to take next on this journey I started last year. I’m now more comfortable in making the decision thanks to your thorough input and encouragement.

I’ve decided to take the path-of-least-resistance and zero extra-tasks other than adding to what I already have on my websitehttps://www.technologysalad.com. I’ll start it as a blog and allow for feedback from folks on how well it works for them. This will allow me the greatest freedom in how the information is presented and collected, negating any hurdles or roadblocks potentially consuming my precious time from canned/rigid formats. I will use other services if they compliment my efforts while also making the process more efficient for those seeking my works.

干杯，
布伦特

#4

So,@superhans, because you have taken the time to help and encourage, and if you don’t mind：咧嘴笑：, I’d like to send you the entire mod-package…there are 10+ mods that’ll make your Cetus dance like no other. We can discuss the details via private message Andreas, I’ll contact you via pm when I’m ready to send, sound good?

There are other folks that have made an impact on my journey, I’ll contact you folks via pm, big thanks to you as well!

干杯，
布伦特

#5

哇，谢谢布伦特！我很高兴我是帮助！是的，请乐意收到Mod-Package并将其应用于我的Cetus。我肯定会提供反馈！当您准备好的时候，请随时携带时间，随时与我联系。我下几天我从城里出来了，但将有时间来到未来几周/月。

干杯，

Andreas

#6

Alrighty then, travel safe and chat later.

Good journeys to you,
布伦特

#7

Thanks a bunch! Good and productive days to you!

#8

I hate to be the bearer of bad news but think you’re investing your time and efforts into the wrong project! Based of the activity of this forum, this isnt the most popular of printers (even if it is good) and seeing as the main focus of this product range is price then i cant see you selling too many “mod packs”

you might be better off trying to cut a deal with Tiertime, if they like your mods and they get incorporated into the product then you maybe get a royalty from each sale?

#9

Thanks for your thoughts@onis_uk…and the possibilities.

如果您从一开始就跟随了我的故事，您可能错过了这个项目的动力。这不是关于投资的时间或所应用的努力，以及它is对于我来说，从一开始就恰恰是正确的项目，只要它停止为我提供自由的时刻。

这是一项自由时刻的一个副作用已经证明是，多年来，即使是现在，也是如此，不太精确的结构组件被信任为附着精密组件的骨干。

很久以前，我很幸运能够在辉煌的电气和机械工程师旁工作。他是那个谦虚的老年人，我说“幸运”，因为他慷慨地分享了一些他的brilliant deviations. Many lessons subtlety evolved over many years of our workstations being within a pencils-drop. There was one lesson that has served-me-well across many differing careers since, most-certainly not easily mastered, but if honed over-time, one that is the backbone of analyzing “symptoms” and revealing the actual cause thereof with almost effortless pinpoint-accuracy. Causality buried within misleading symptoms, compounding and twisting-the-clues at every layer peeled…I simply love the chaos …happy to be in it …and suffering when it comes to an end.

Doesn’t matter if many folks make-the-leap and support my works, I could very easily walk-away from publishing…ever. But if I do publish, and when the project helps some attain better-quality results quicker and more reliably from an affordable machine… fantabulous!..mission accomplished! I already know one… and that’s all that really matters… it’s all about the journey：眨眼：

干杯，
布伦特

1就像
＃10

Hello,

Cetus 3D printers are pretty nice from my point of view: I bought 3 of them: 2 extended and 1 Standard (all MK2).
For sure they can be improved.
I already solved the Z axis tremors with a tough solution : see attached photo.

总结：
1原稿“薄”铝板：改变：新的一个是11mm厚，表面250 x 250 mm：重，坚固。

2-Aluminium pillar: 40 x 40 , 310 mm height. Tightened to the aluminium plate, using a M8x60 screw. Contact surface end milled to guarantee a perfect right angle mount on the plate.

3-Then Z axis “locked in place” using 2 locking plates,5mm thickness, T-nuts and screw.

Believe me: Z axis mount is not shivering anymore…

另一个非常方便的升级：在蜂鸣器线上的简单开关：没有更多“嘟嘟声，哔哔声，哔哔”，早上2或3点在完成打印！..

Also, in progress: infra-red sensors end-stop positioning and TL smoothers on all axis. CPU replacement with a TinyFab one (and yep, you can drive a Cetus 3D with Simplify3D)…

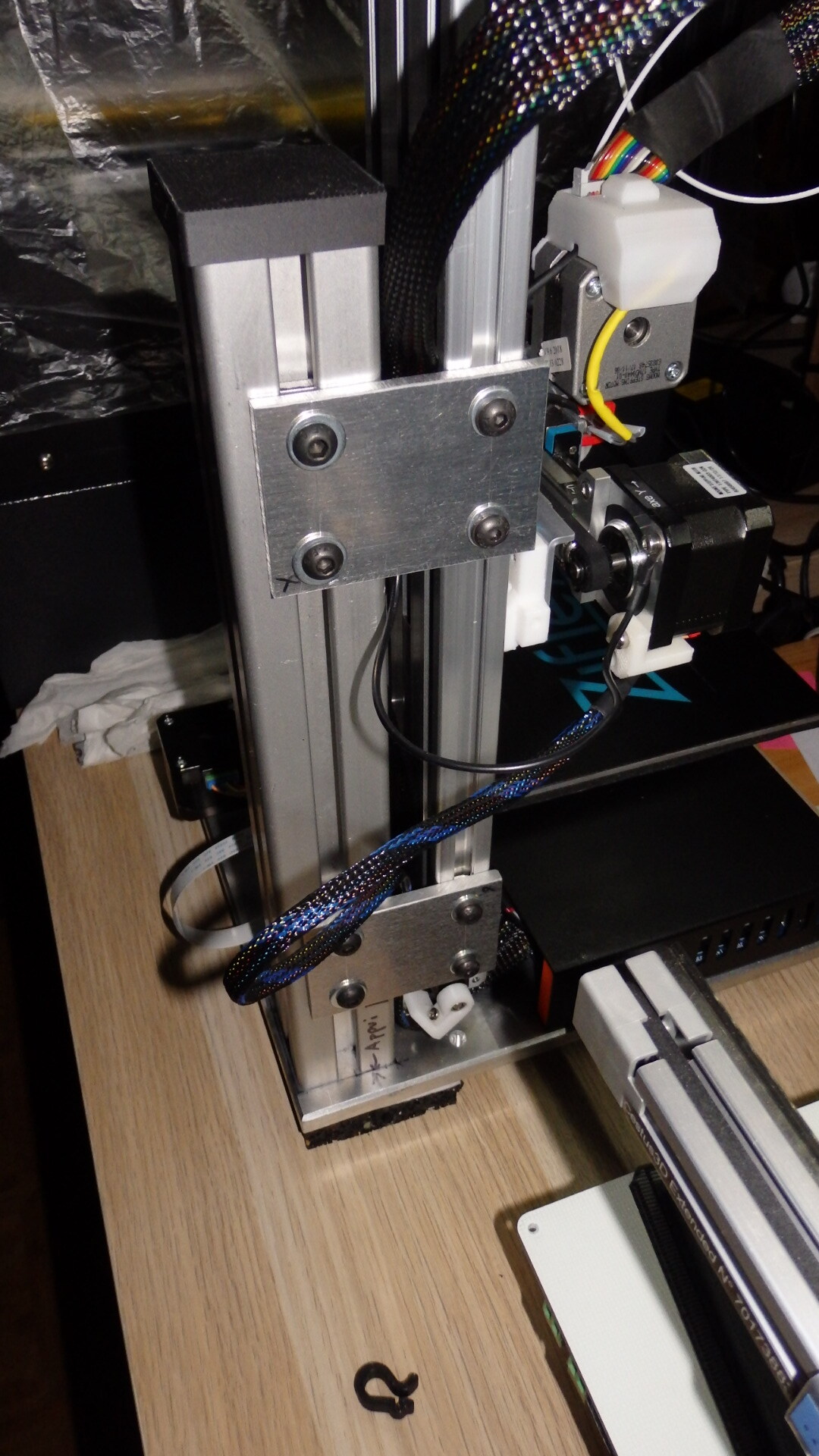

P1270191
p1270191.jpg. 1080×1920 366 KB

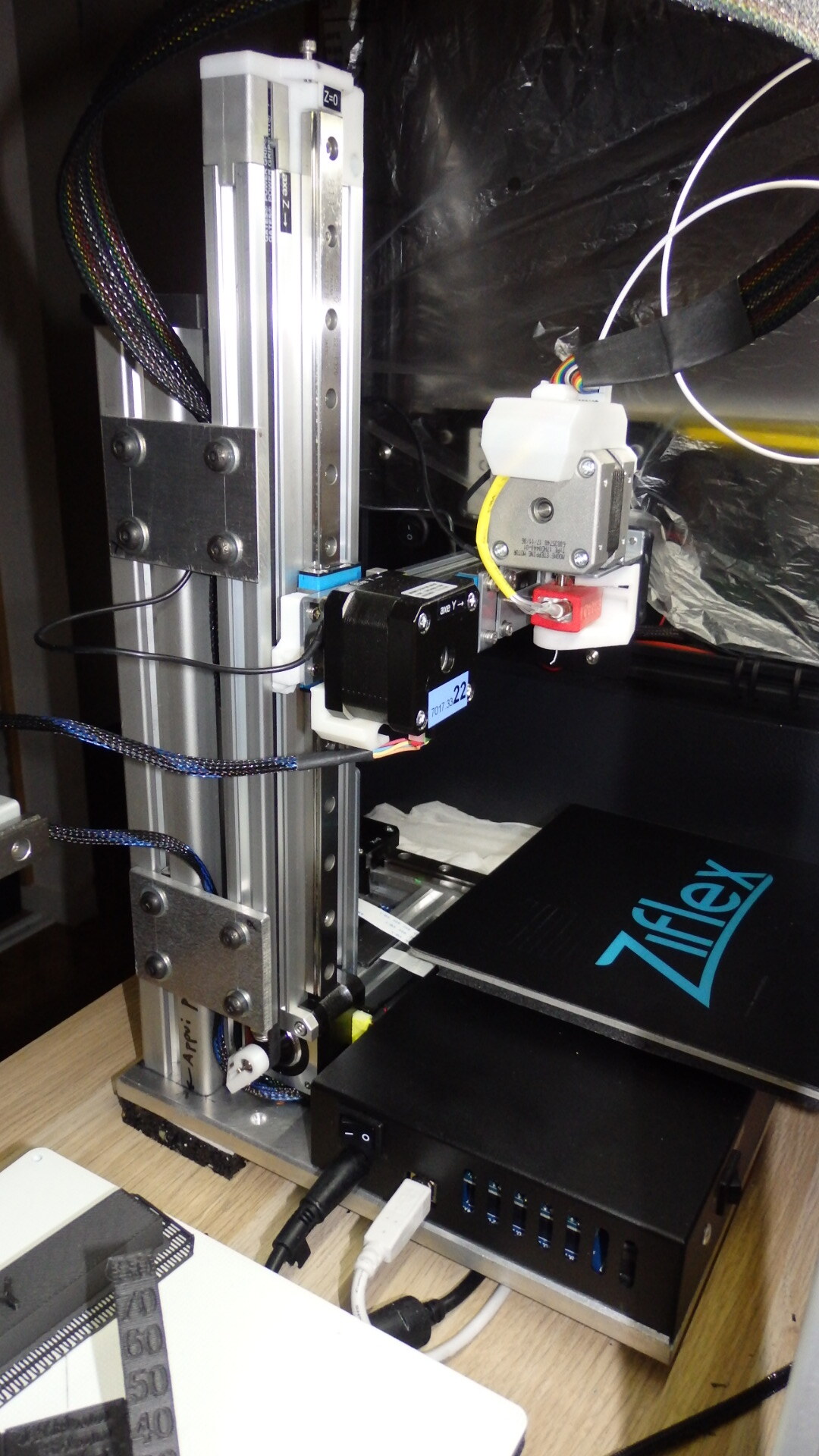

P1270187
P1270187.JPG 1080×1920 384 KB

I will post some other photos once the second printer will be fully upgraded (including, I hope, a plexyglass enclosure to allow ABS printings, as well as other “technical” materials…

一些清晰可见的步骤前进，更好地打印质量

Best regards from France , guys!:raising_hand_man:

1就像
＃11

Nice robust upgrade you have there, great work! The use of stronger fasteners is for sure needed in many of the structural areas.

I’ve been using Simplify3D for awhile now, just love the print control at each layer level.

I’ll be posting my solution very soon!

欢呼和保持你正在做的伟大工作@ tasson74!
布伦特

＃12

这些插件我们创建这个鲸鱼座打印机a true workhorse for engineers, product developers and prototyping houses. Heck, you can fit 2 or 3 Cetus printers in the same space as more expensive printers, printing potentially 3 times faster and at the same or better quality!

1就像
＃13.

If all goes well, I’ll publish the z-axis mod this weekend, and hopefully a video to show the print accuracy at high-speed.

June16 edit: forgot about Father’s Day and a Birthday! Will try for Tuesday.

cheers,
布伦特

1就像
＃14

Totally missed this, very looking forward! Pushed my 3D printing hobby aside for a couple days to finish some wood work project, but now I’m laser focused again!:slight_smile:

＃15

I decided to visit a local machine shop to get advice on the most economical method to connect several mod-parts. Even though I have a precision cnc mill and lathe, a second opinion is always a good idea. I’m making a small change to lower the cost of machining the z-axis stiffener, so a few more days will pass before the reveal.

A few months ago I contacted a 3D filament distributor about extrusion tolerances and mentioned I was tentatively planning an “Internet Contest” around the first-look video for the z-axis stiffener, they expressed interest and offered prizes of 10 spools of filament and 3 filament-spool “smart” containers that dehumidify as needed. I’d love to follow through with the contest, would be a ton of fun for participants.

cheers!

＃16

啊，我想象的是，Mod都是印刷的，但当然非常精确和僵硬是钥匙，塑料不会削减它总是我想:slight_smile:

与比赛很酷！必须思考一个漂亮的小演示项目，听起来很有趣！

Thanks for the update and sorry for the slow answer rate here…

＃17

@superhans, there’s just no-way to properly stiffen the backbone without at least aluminum. Even the stainless-steel base everything attaches to is quite flexible, not so noticeable without appropriate measuring devices.

I have several mods that stiffen the extruder axis, but they are not the ultimate solution. The problem is the aluminum extrusion, while it does provide a convenient and inexpensive structure to attach things to, it’s not designed to provide a backbone for linear motion. It’s use keeps these printers affordable and within the reach of school budgets and those without deep-pockets…kudos to Tiertime!

The z-axis 3D printed belt-connector finally gave-up on my printer. Was thinking of using aluminum and mill a new belt-connector but decided to use Delrin and fatten the connector to mate with the side of the linear-guide, thereby decreasing the stress on the connector. Feels like machining butter.

I kinda fell into another rabbit-hole, have a tougher extruder axis in-mind and will allow for a print-bed of around 220-230mm’s…tis tempting, …but…must…resist!

cheers!

＃18

Yeah, I guess those aluminum extrusion are merely the cheapest and lightest way to get something that is fairly stiff via their profile, but probably not the ultimate solution. You gotta post a photo of your new connector replacement. I googled Delrin (never heard of it before), but can’t yet imagine how you make use of it.

And yes please resist the next rabbit-hole at least for a bit:slight_smile:Thoroughly enjoying your posts though, always packed with things I have not much experience with yet.

Cheers!

1就像
＃19

delrin功能......

  • 优异的尺寸稳定性出色的岩洞ion resistance among thermoplastics and metals, so when mated with the linear-guide, the mating surface dimensions will remain stable for longer periods. Very low moisture absorption -consistent properties means less fastener creep. Moisture, lubricants and solvents including gasoline and gasohol have little effect, which is important in parts incorporating self-threading screws or interference fits.

  • Continuous use temperature of 180°F -retains much of their toughness through a broad temperature range… so very little fastener creep allowing the screw to remain locked at the desired torque for longer periods.

  • 易于机器关闭公差，我争取少于.0005“宽度超过5英寸。

***high tensile strength, stiffness, resilience, fatigue endurance and a low coefficient of friction against metals

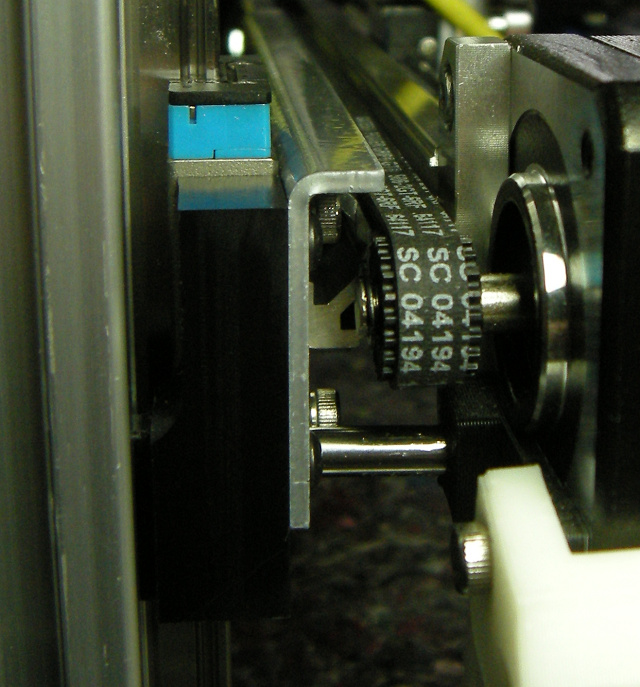

connectorBeltYaxisCetus001
connectorBeltYaxisCetus001.jpg 640×687 176 KB

The next version I’ll wrap it around the corner of the z-axis in the photo. This will help reduce the vertical yaw movement of the linear-guide on the rail. You might be surprised how much the yaw movement has on the line-width tolerance.

线性导向块的偏航容差是在将y轴调平到打印床时的巨大变量。然后，问题变为升级时......当Y轴电机通电（供电）或不通电时执行此过程？最准确的方法是电机通电！

cheers!

＃20

I’m posting this pic hoping it will help others with their ongoing mysterious printing issues, specifically the problems@rogermc.has been experiencing这里

我计划提供足够的documentation along with any reveal-pictures of my MKII printer setup, but time is passing too quickly these days and I’m experiencing very tough days with severe pain from a car-accident many moons ago…so this picture is posted without supporting documentation. Heck, I was even planning an Internet Contest with many cool prizes along with the introduction of my collection of mods for this printer.

有趣的是，在上面的最后一篇文章中，Delrin皮带连接器的照片还显示了另一种简单的MOD，当与我为挤出机组件设计的其他MOD组合时，可以增加打印精度。我用手将相机焦点设置在该部分而不是Delrin连接器上：眨眼：, you know…for the fun of it … and maybe even someaha人们的时刻。

改善/设计工业和一般消费产品已经有多十年来的焦点，我不会浪费亚博vip首页任何的我的时间或你的时间讨论我专业地支持我的作品。我只会说“我有点有一群不同的东西”:sunglasses:

Ok, enough rambling…

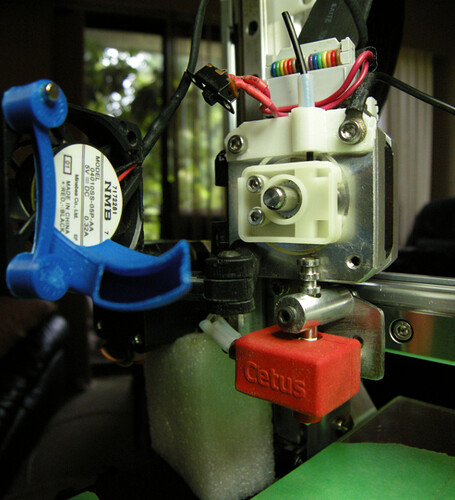

image.jpg 703×772 208 KB

以上：挤出机电机可在垂直和水平，喷嘴和加热器块中可调节，可在垂直和水平的风扇/管道组件中旋转的垂直和水平，风扇/管道组件。摇滚固体喷嘴安装为极其准确的缩回，层高，层宽和垂直对准。喷嘴的垂直位置是最重要的预防性维护任务之一，用于无错误和准确的打印。保持喷嘴的圆形铝也降低了喷嘴的顶部热区。Securing, aligning and cleaning the nozzle is by-far the best things you can do to your printer in your quest for reliable/accurate prints from your Cetus. The filament you see loaded is Ninjatek Armadillow.


I just printed my first model with the Armadillow filament, the只要problem I have is I’m experiencing too much temperature-swing …this filament has a very-tight temperature tolerance and is the reason why the photo above has surface artifacts and the bridging somewhat failed(among many other reasons)…while printing I had to turn the fan on-and-off repeatedly to keep the temp within the 4 degrees celsius tolerance needed for the quality I’m looking for.

The above photo is printed using 3 layer-heights, .30mm, .20mm and .10mm , 3 different layer-widths, .40mm, .50mm and .60mm respectively. There are also 2 different infill line-widths along with 2 different infill patterns. Using these settings has allowed for rigidity where needed, and extra vibration/frequency -dampening where needed on these extruder motor-mounts.

July5 add：哦......你在上面看到的照片中看到的倒角只存在于这一侧，另一侧是90℃的边缘......倒角配合了一些内部结构。

July6 add: you may notice the head of the socket-head screw, just to the right, in the rail, is closer to the surface of the rail compared to other rail fastener heads. This screw is 6/32" x 20mm long, the screws main function is to lessen the horizontal axial-torque in the extrusion. When you provide ultimate-strength stabilization to the nozzle assembly, z-axis tower and x-axis, you are now left with the lesser noticeable structural forces/variables governing print-quality…axial-torque and linear guide-block tolerances. The 6/32" x 20mm fastens the guide-rail to the other side of the y-axis extrusion arm…there are 3 locations I’ve employed y-axis axial-torque limiters.

These lesser forces are difficult to measure, they happen quickly and are not noticeable when they happen unless you use lasers to measure the movements. I have also found the effects of these forces on print-quality are less noticeable on thicker layer-heights of .30mm and above. I’ll try and prepare some visuals.

update: heating issue, solved…it’s been awhile since checking the heat-block thermal paste, re-applied a nice blob in each hole and re-inserted the heating components…back in business!

cheers and good journeys folks!
